Product Description
- FOR ED300 / DF300 (Primary)
- FOR ED150 / DF150 *
- FOR ED175 / DF175 *
- FOR ED200 / DF200 *
- FOR ED250 / DF250 *

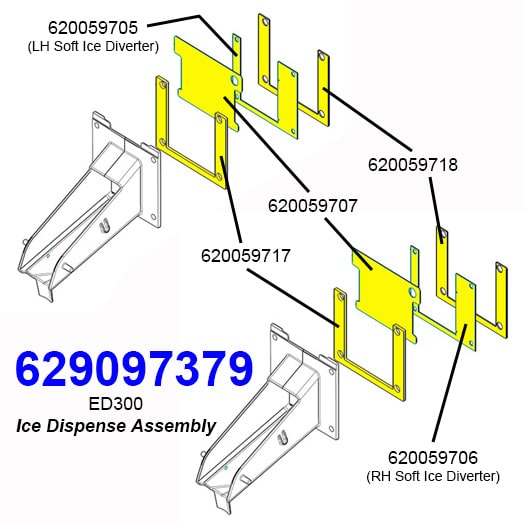

- SYSTEM SECTION: Ice Dispense Assembly

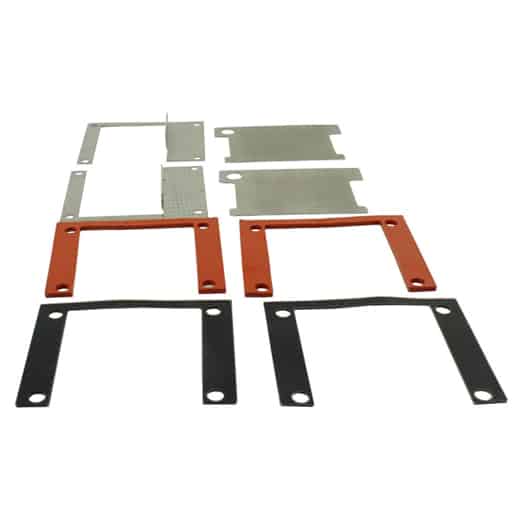

- INCLUDES OEM # 620059717 x 2 (Red Outer Gate Gasket)
- INCLUDES OEM # 620059707 x 2 (Gate Restrictor)
- INCLUDES OEM # 620059718 x 2 (Black Inner Gate Gasket)
- FOR SOFT ICE DISPENSE ONLY:
- INCLUDES OEM # 620059705 x 1 (Soft Ice Deflector)
- INCLUDES OEM # 620059706 x 1 (RH ED300 Deflector)
- MATERIAL #: 150033580
* NOTE: All kit components taken individually are verified for use with the ED series dispensers. However, not all ED models require two (2) ice gate gaskets and a LH and RH soft ice diverter. Although not specifically identified, it is inferred that this kit is primarily for the ED300. The reason is that it has two ice dispense chutes requiring a gasket with a restrictor for each and a soft ice diverter that is specific for the left and right sides of the unit.
