Product Description
- FOR ED300

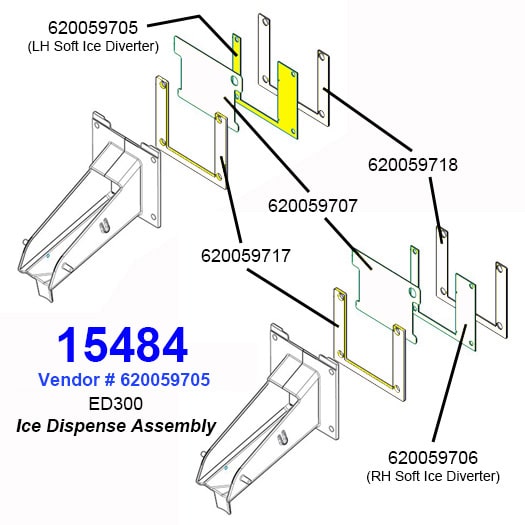

- SYSTEM SECTION: Ice Chute Assembly
- SYSTEM SECTION: Ice Dispense Assembly
- SYSTEM SECTION: Upper Cabinet Assembly
- LH = Left Hand
- ALSO CALLED, “Left Hand Ice Deflector”
- USED FOR SOFT ICE ONLY
- OEM # 15484 IS SAME ITEM AS OEM # 620059705 (ns)
- FOR RIGHT HAND, USE GIS # 620029002 (OEM # 620059706)
- SEE RELATED PRODUCT, OEM # 629097379 (Double Gasket Kit)
- SEE RELATED PRODUCT, OEM # 629088564 (Deflector Kit)
- USED WITH OEM # 620059718 (Black Gasket)
- USED WITH OEM # 620059707 (Gate Restrictor)
- USED WITH OEM # 620059717 (Red Gasket)
We may not have stock at the time of purchase. Upon ordering it, we will check availability and respond back if an issue exists. This part may require a special order and a lead time.
This product should be used when mounting a soft ice nugget style ice machine. It provides a mechanism to assist the delivery of soft ice through the ice dispensing assembly.
