Product Description
- FOR FLAVORFUSION
- FOR FLAVOR OVERLOAD
- FOR IDC215
- FOR IDC255 / IDC255PFG
- FOR IDC PRO / IDC RED

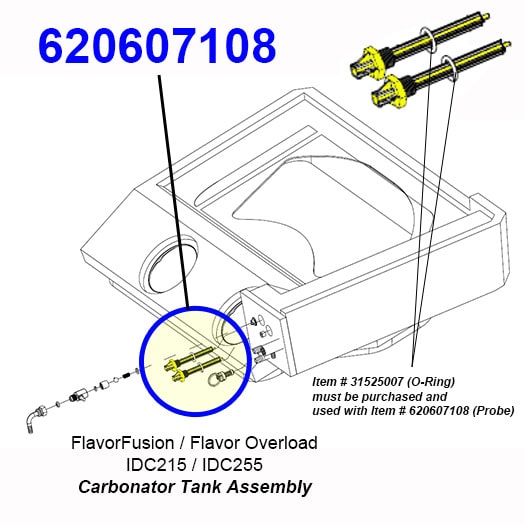

- SYSTEM SECTION: Carbonator Tank Assembly
- IMPORTANT: MUST BE PURCHASED (USED) ALONG WITH:
- OEM # 31525007 (O-Ring)
- USED WITH OEM # 31525007 (O-Ring)
- RELATED ITEM OEM # 620518322 (Complete Carb Assy) (OBS-NLA)
- RELATED ITEM OEM # 620518314 (Complete Carb Assy) (non-stocked)
- MATERIAL #: 150022491

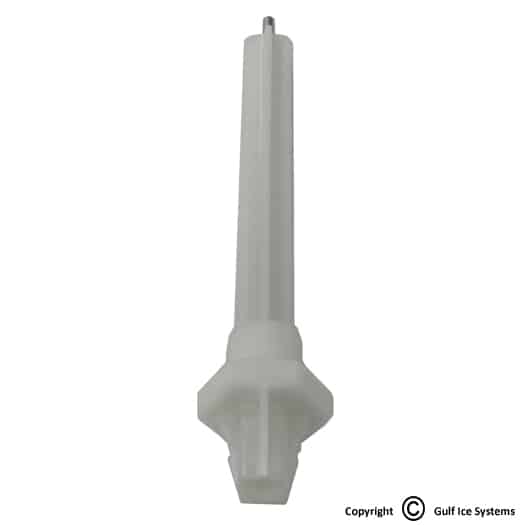

This probe is a sensor used to monitor the liquid level of the carbonator tank (intellicarb models) to prevent overflowing or running dry. It uses a solid-state conductive metal tip that extends downward into the carbonator tank. When the liquid rises, it contacts the metal tip producing a micro-current that triggers the probe to send a signal to the control board which is interpreted as a full tank. The board then routes a command to the carbonator motor to shut off. When the water level drops below the probe tip, the same process is engaged in reverse and the motor is switched on to fill the tank.
