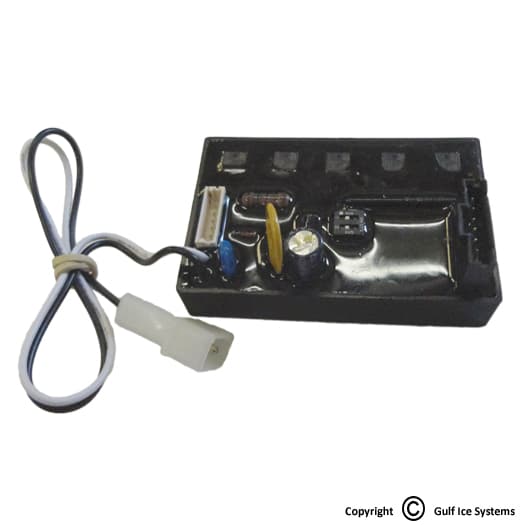

P.C. BOARD, BLACK (620314823), FLAVORBLAST

Item # 620314823

Price: $371.91

  • Keypad and Solenoid Logic Control Board
  • OEM Part # 620314823
  • For ED150FB, ED175FB
  • For ED200FB, ED250FB
  • For ED300FB, FB Tower

Product Description

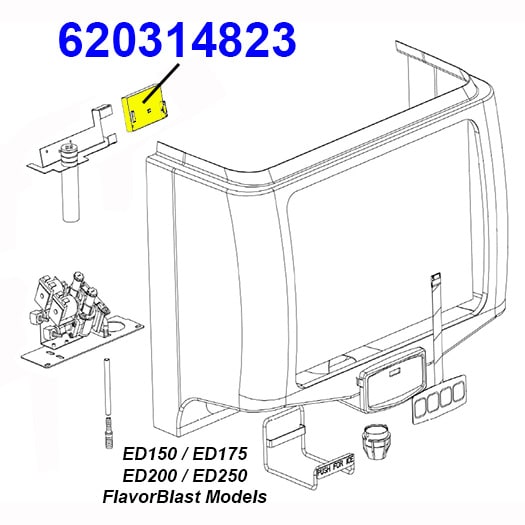

  • FOR ED150 (FlavorBlast Model)
  • FOR ED175 (FlavorBlast Model)
  • FOR ED200 (FlavorBlast Model)
  • FOR ED250 (FlavorBlast Model)

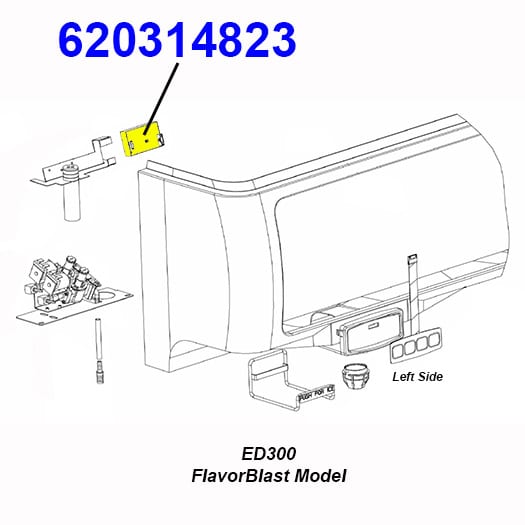

  • FOR ED300 (FlavorBlast Model)

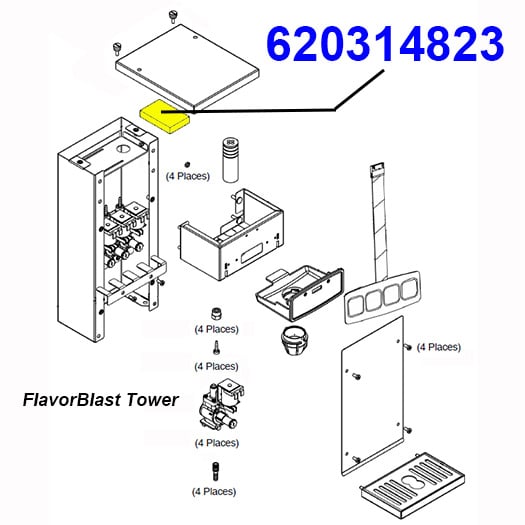

  • FOR FLAVOR BLAST TOWER
  • SYSTEM SECTION: FlavorBlast Models
  • SYSTEM SECTION: Merchandiser Assembly
  • USED W/ OEM # 620313657 (Jumper to Keypad 4 FL)
  • USED W/ OEM # 620313658 (Jumper to Keypad 2 FL)
  • USED W/ OEM # 620316442 (Wire Harness Solenoid 2 FL)
  • USED W/ OEM # 620316443 (Wire Harness Solenoid 4 FL)
  • IF ED175 REFRESH (PBD)
  • IF IDC255 SHOTS (Flavor Shots)
    • USE OEM # 620314823-200
  • MATERIAL #: 150026215

This component is the main logic control board that manages portion control, dispense timing, and provides power to the flavor shot solenoid valves. This printed circuit board supports either the 2-flavor or 4-flavor FlavorBlast models (the PC board stays the same, the differences are the power harnesses and the keypad jumpers used).

Product Specifications

Dimensions
Product Weight .1 lbs
Additional Specifications
Vendor

Product Manuals & Documents
