Product Description

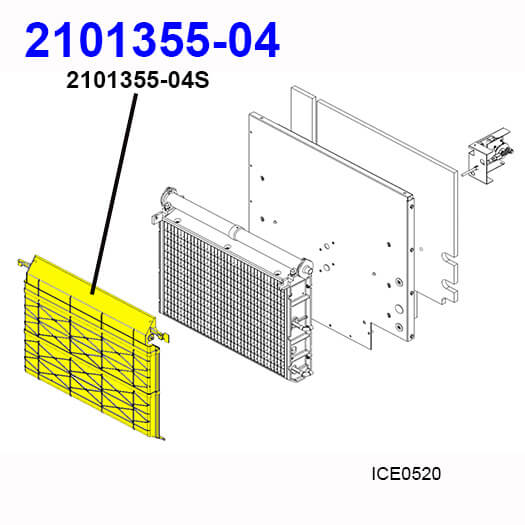

- FOR ICE0520

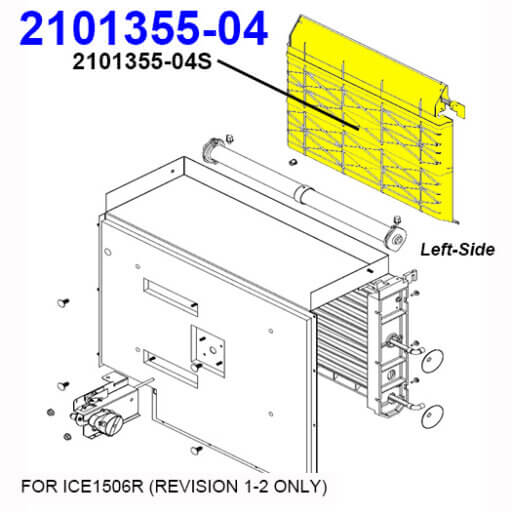

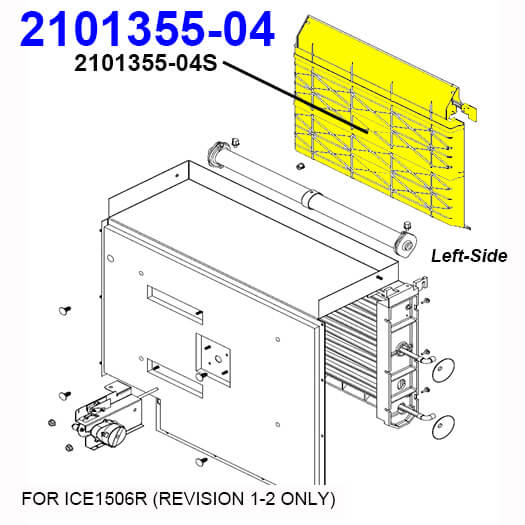

- FOR ICE1506R (Revision 1 and 2 Only)
- FOR ICE1506R (Revision 3-4-5-6-7-8) USE OEM # 2101416-02S
- FOR ICE1506HT USE OEM # 2101416-02S (REV.1-2)
- SYSTEM SECTION: Refrigeration Section
- SYSTEM SECTION: Evaporator Assembly
- SYSTEM SECTION: Water System
- LH = LEFT HAND (TAB ON LEFT when facing inside curtain)
- USED WITH THE LEFT SIDE EVAPORATOR (ICE1506)
- FOR RIGHT HAND CURTAIN REFERENCE OEM # 2101355-03S (non-stocked)
- PREVIOUS OEM #: 2101355-04
- NEW OEM #: 2101355-04S
Note: There are two (2) evaporators in the ICE1506. One is located on the right-side and the second is on the left-side. Ice drops from both evaporators in the center. There is a different splash curtain for each.
We may not have stock at the time of purchase. Upon ordering it, we will check availability and respond back if an issue exists. This part may or may not require a special order and a lead time.
