Product Description
- FOR ED150 / DF150
- FOR ED175
- FOR ED175 REFRESH
- FOR ABS 1.0

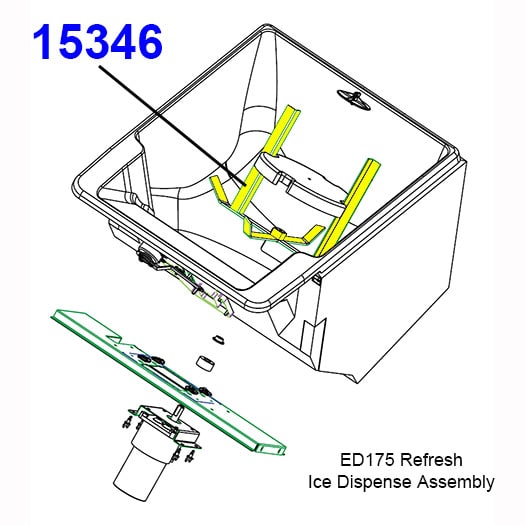

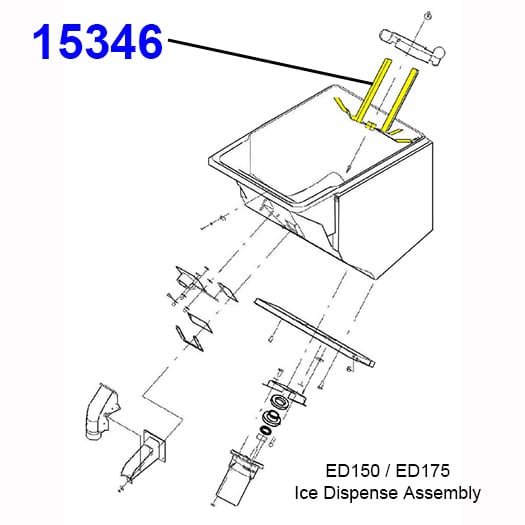

- SYSTEM SECTION: Ice Dispense Assembly
- SYSTEM SECTION: Upper Cabinet Assembly
- SYSTEM SECTION: Agitator Assembly
- MATERIAL #: 150029639

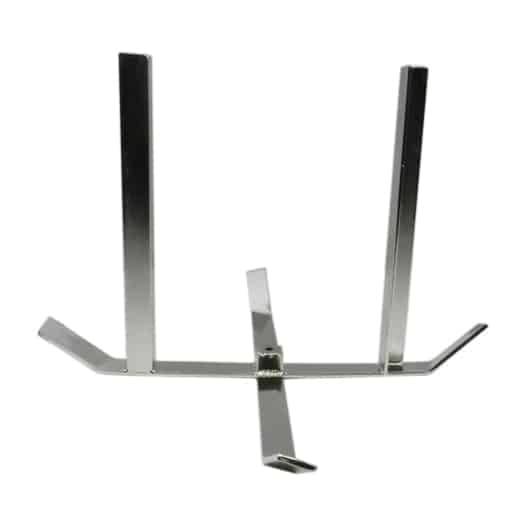

Controlled by the agitation timer cycle and drive motor, this agitator assembly functions to rotate and break up clumping ice. It also serves to sweep ice into the dispense chute when a customer activates a lever or button. It is constructed out of thick heavy-duty metal to withstand hundreds of pounds of downward pressure produced by a fully loaded ice bin. Although engineered to be tough enough to endure continuous use and intense pressures, this component is subject to wear-and-tear and should be evaluated during regular maintenance schedules. Serious functional failures can occur when this part fails.
