AGITATOR RETAINER (15087), FOR ED / IDC / FF-FO

Item # 15087

Price: $31.61

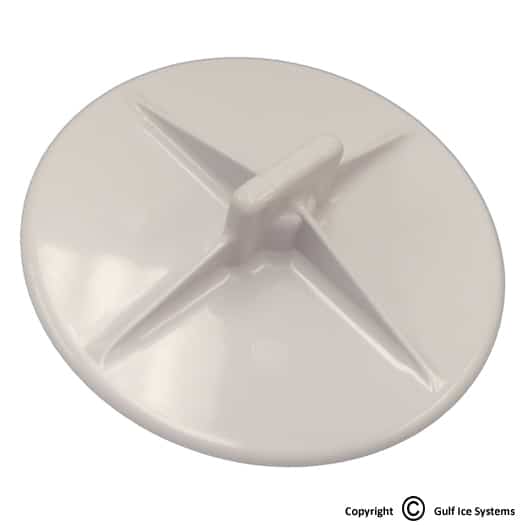

  • Agitator Retainer Cap
  • OEM Part # 15087
  • For various Cornelius ice-beverage dispensers

Product Description

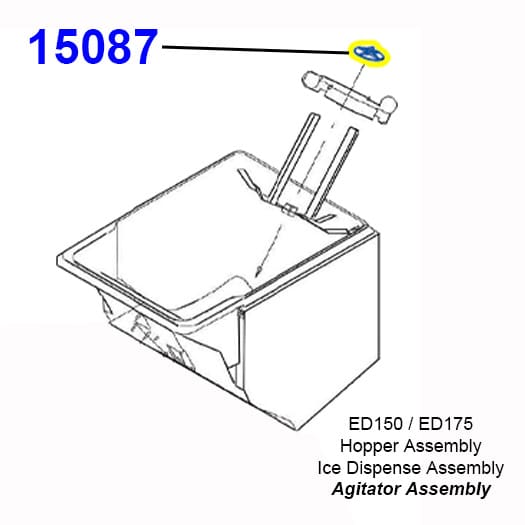

  • FOR ED150 / DF150
  • FOR ED175 / ED175 REFRESH (PBD)

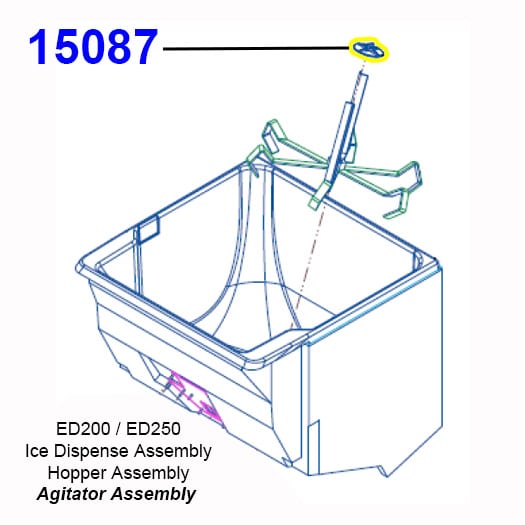

  • FOR ED200 / DF200
  • FOR ED250 / DF250
  • FOR IDC215
  • FOR IDC255 / IDC255PFG
  • FOR IDC PRO / IDC RED
  • FOR CARMA 250

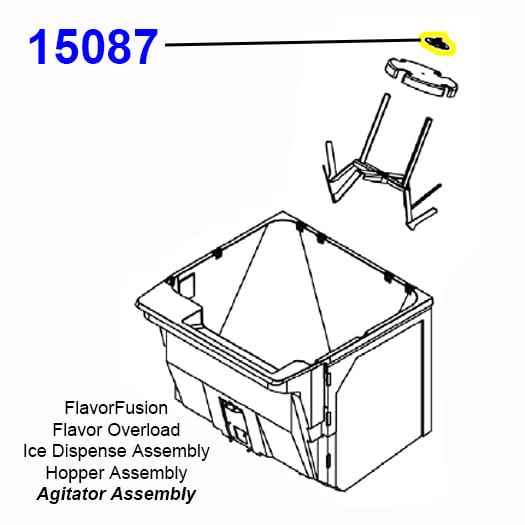

  • FOR FLAVORFUSION
  • FOR FLAVOR OVERLOAD
  • FOR IP150
  • FOR ABS 1.0 / ABS 2.0
  • SYSTEM SECTION: Ice Dispense Assembly
  • SYSTEM SECTION: Hopper Assembly
  • SYSTEM SECTION: Agitator Assembly
  • MATERIAL # 150029442

This agitator retainer cap is an important and critical mechanical securing component. It serves to lock the rotating agitator bar assembly that is fastened to the motorized drive shaft. It keeps this assembly in place so it doesn’t wobble or become misaligned. It also functions to absorb the stress produced when the ice paddle wheel rotates through heavily packed or clumped ice. Due to the continuous force exerted on this component, it is subject to wear-and-tear. During maintenance schedules, this component should always be evaluated for possible failure and replaced if found worn. Serious functional failures can occur when this part loses its ability to secure the agitator assembly.

Product Specifications

Dimensions
Product Weight .08 lbs
Additional Specifications
Vendor

Product Manuals & Documents
