Product Description
- FOR ALL ICEU MODELS
- FOR ICE1506 (R404)
- FOR ICE1506HT49 (R449)
- FOR ICE1506HR49 (R449)
- SYSTEM SECTION: Control Box

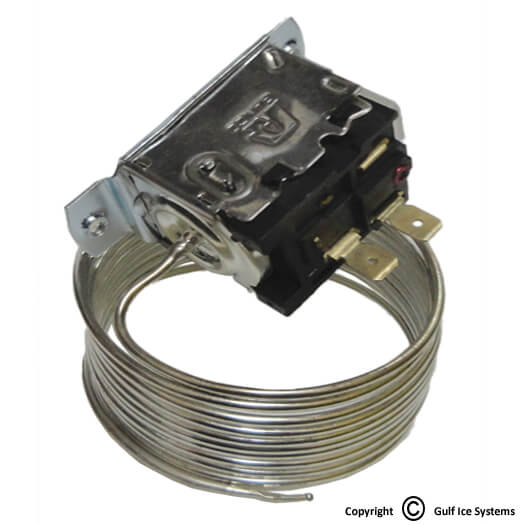

This thermostat control is an electro-mechanical sensor. It uses a long capillary tube that is sensitive to temperature. It functions by mounting the capillary tube into the ice storage bin. When ice piles up high enough to physically contact or surround the capillary line, the bin thermostat will trigger when the temperature drops to the preset threshold (32 degrees Fahrenheit). The gas in the capillary tube contracts from the cold and causes an internal diaphragm to snap open the electrical contacts. This in turn signals the main control board to stop producing ice before the bin overflows. This component basically serves as a bin level control.
The ICE and ICEU models are obsolete and no longer produced.
