Product Description
- OEM PART # 9161156-01S
- FOR GEM0956x90 (R290)
- FOR HEM0956x90 (R290)
- FOR GEM1306x90 (R290)
- FOR HEM1306x90 (R290)
- FOR MFI1256x90 (R290)
- FOR MFI1506x90 (R290)
- FOR GEM0956x, GEM1306x (R404)
- FOR GEM0956R49, GEM1306R49 (R449)
- FOR GEM2006R, GEM2006R49 (R404 & R449)
- FOR MFI1256x, MFI1506x (R404)
- FOR MFI1256R49, MFI1506R49 (R449)
- FOR MFI2306R, MFI2306R49 (R404 & R449)

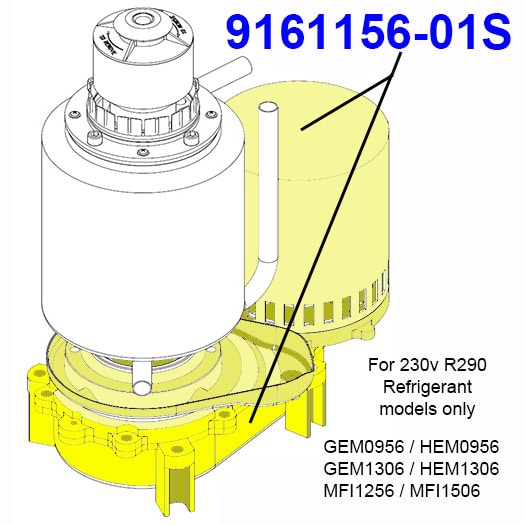

- SYSTEM SECTION: Gear Reducer Assembly
- ALSO CALLED, “Gearbox and Motor Assembly”
- REPLACES OEM # 9161126-01S
- > THIS ASSEMBLY DOESN’T COME WITH OIL
- (If you are installing this item, purchase OEM # 6051073-01 (oil))
- VOLTAGE: 230V/60HZ
Important note: Per Ice-O-Matic advisory dated July-2026, OEM part # 9161156-01S replaces item # 9161126-01S (now obsolete and no longer available). Additionally, this gearcase and motor assembly can be used on R290, R404 and R449 interchangeably as long as the unit is a 230v model.
