Product Description
- FOR QUEST ELITE 2000
- FOR QUEST ELITE 4000
- FOR QUEST 2000 (CURVE)
- FOR QUEST 4000 (CURVE)
- FOR QUEST NT (CURVE)
- FOR QUANTUM 1-2-3-4
- FOR MILLENNIUM II 4-6

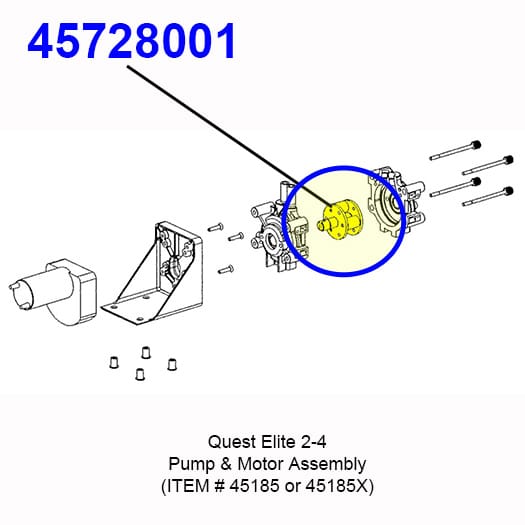

- SYSTEM SECTION: Pump & Motor Assembly
- COMPONENT OF ITEM # 45185 (Pump & Motor Assy)
- COMPONENT OF ITEM # 45185X (Pump & Motor Assy)
- ALSO REFERENCE ITEM # 45078 (Pump Assy)
- MATERIAL #: 150026457

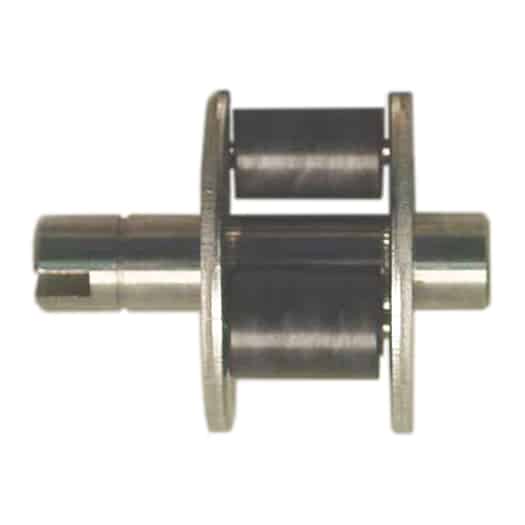

This is an essential component that is located in the pump head. It assists in drawing liquid concentrate from source packaging or bag-in-box where it is then mixed with water. The rotor assembly ensures consistent compression against the pump tubing which creates a positive displacement flow. Due to constant use and structural friction against the pump tubing, this part is considered a high wear item. If a juice dispenser is experiencing inaccurate drink ratios (more water than juice) or the pump casing is leaking or cracked, then this rotor could be the culprit and needs to be inspected.
We won’t have stock at the time of purchase. Upon ordering it, we will check availability with the manufacturer and respond back if an issue exists. This part may require a special order and a lead time.
