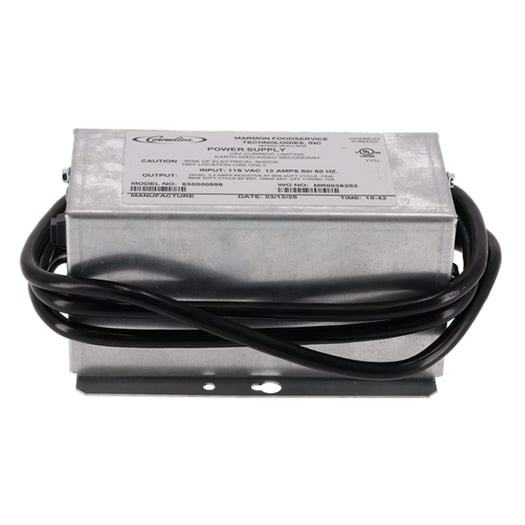

TRANSFORMER, 115V 24 RMT 75VA EXT (630000596), FOR CBXXXX

Item # 630000596

Price: $342.73

  • 115v Transformer
    • (Used on Coca-Cola CB units)
  • OEM Part # 630000596

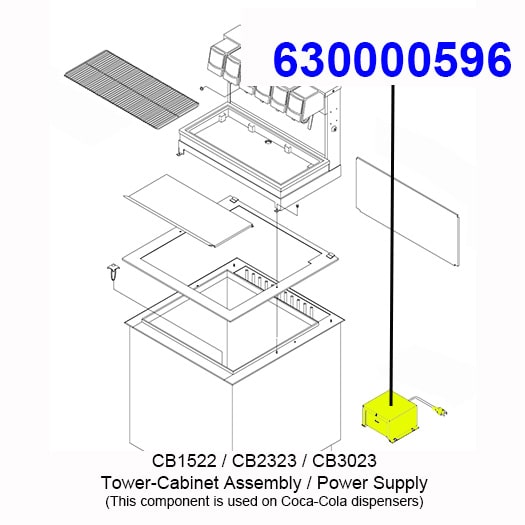

  • For CB1522, CB1722, CB2323, & CB3023

Product Description

  • FOR CB1522 (Coca-Cola Models)
  • FOR CB1722 (Coca-Cola Models)
  • FOR CB2323 (Coca-Cola Models)
  • FOR CB3023 (Coca-Cola Models)
  • SYSTEM SECTION: Electrical System
  • THIS ITEM ALSO IDENTIFIED AS, “Power Supply, 115v or E-Box”
  • REPLACES OEM # 163408001
  • REPLACES OEM # 630001233
  • THIS TRANSFORMER IS USED ON:
    • COCA-COLA DROP-IN MODELS ONLY
  • IF PEPSI & GENERAL MARKET CB MODEL:
    • USE OEM # 630000601
  • VOLTAGE: 115V / 24 RMT 75VA EXT
  • MATERIAL # 150030837

Per the Cornelius tech service department (2026), this item is only used on Coca-Cola branded drop-in models only.

This transformer functions to convert standard high-voltage wall power and reduce it to a safe lower voltage. This lower voltage is then used to power circuit control boards, ice bank sensors, valve solenoids, and other low voltage components.

We won’t have stock at the time of purchase. Upon ordering it, we will check availability and respond back if an issue exists. This part may require a special order and a lead time.

Product Specifications

Dimensions
Product Weight 5 lbs
