Product Description
- FOR GEM0450 (R404 and R290)
- FOR HEM0450 (R290)
- FOR GEM0650 (R404, R290 and R449)
- FOR HEM0650 (R290 and R449)
- FOR GEM0956 (R404, R290 and R449)
- FOR HEM0956 (R290 and R449)
- FOR GEM1306 (R404, R290 and R449)
- FOR HEM1306 (R290 and R449)
- FOR GEM2006R (R404 and R449)
- FOR HEM2006R (R449)
- FOR MFI0500 (R404 and R290)
- FOR MFI0800 (R404, R290 and R449)
- FOR MFI1256 (R404, R290 and R449)
- FOR MFI1506 (R404, R290 and R449)
- FOR MFI2306R (R404 and R449)

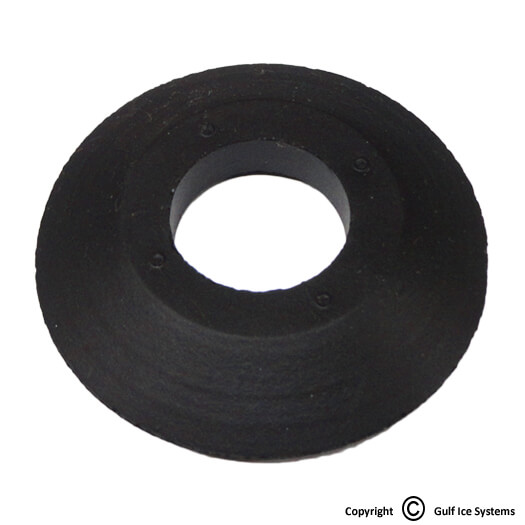

- ALSO CALLED “Water Seal Ring”

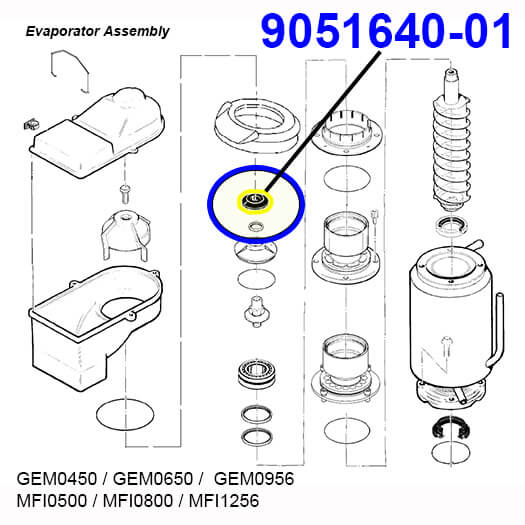

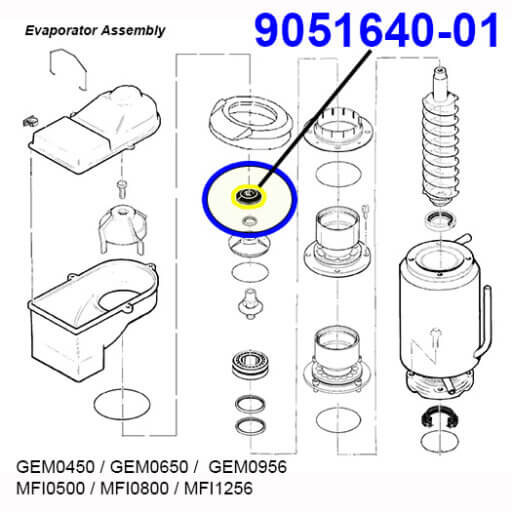

- SYSTEM SECTION: Evaporator Assembly
- SYSTEM SECTION: GEM-HEM-MFI Breaker Assembly
- COMPONENT OF OEM # 1051220-01A (GEM Breaker)
- COMPONENT OF OEM # 1051260-01 (HEM Breaker)
- COMPONENT OF OEM # 1051221-01A (MFI Breaker)
- USED WITH OEM # 9121054-01 (Lip Seal)
- USED WITH OEM # 9151171-01 (Breaker Cover) (non-stocked)
- USED WITH OEM # 9151168-01 (Augur Stud)
- IMPORTANT NOTE BELOW:
Note: There is misinformation in the R404 parts manual for the GEM1306, GEM2006, MFI1506, and MFI2306 as it relates to this part. On page 12, line item # 22, it identifies the “Water Shed” as part # 9051611-01, but it is incorrect. The valid part # should be 9051640-01. Although they share the same name, they have entirely different functions and locations. OEM # 9051611-01 is located at the bottom between the evaporator and gearbox assembly. OEM # 9051640-01 is a component of both part # 1051220-01A (GEM Breaker) and 1051221-01A (MFI Breaker). It is the top piece over part # 9121054-01 (Lip Seal) and 9151171-01 (Breaker Cover).
