Product Description

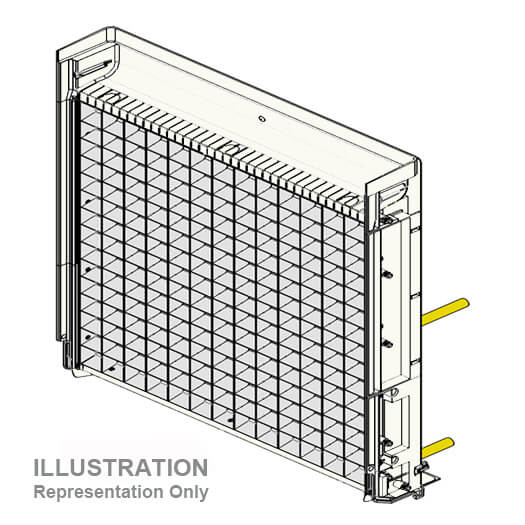

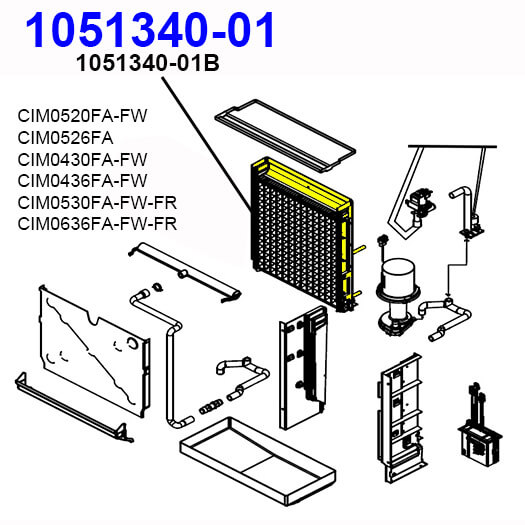

- OEM PART # 1051340-01B
- FOR CIM0430FA (R404) / CIM0430FA90 (R290)
- FOR CIM0430FW (R404)
- FOR CIM0436FA (R404) / CIM0436FA90 (R290)
- FOR CIM0436FW (R404)
- FOR CIM0520FA (R404) / CIM0520FA90 (R290)
- FOR CIM0520FW (R404) / CIM0520FW90 (R290)
- FOR CIM0526FA (R404) / CIM0526FA90 (R290)
- FOR CIM0530FA (R404) / CIM0530FA90 (R290)
- FOR CIM0530FW (R404) / CIM0530FW90 (R290)
- FOR CIM0530FR (R404) / CIM0530FR49 (R449)
- FOR CIM0636FA (R404) / CIM0636FA90 (R290)
- FOR CIM0636FW (R404) / CIM0636FW90 (R290)
- FOR CIM0636FR (R404) / CIM0636FR49 (R449)
- (FA-FW-FR = AIR, WATER, REMOTE COOLED)
- CUBE SIZE (F): FULL
- SYSTEM SECTION: Refrigeration Section
- SYSTEM SECTION: Evaporator Assembly
- SYSTEM SECTION: Water System
- REPLACES OEM #: 1051340-01
- REPLACES OEM #: 1051340-01A
- RH = RIGHT HAND
- USED WITH OEM # 9051730-01 (RH Support)
- USED WITH OEM # 9051729-01 (LH Support)
- USED WITH OEM # 9051738-01 (Top Cover)
- USED WITH OEM # 9051823-01S (Lower Curtain)
Note: When ordering an evaporator from Serial Number 1710 (2017) to and including Serial Number 1802 (2018), the Lower Curtain Assembly PN 9051736-01 –> (Replaced by OEM # 9051823-01S) must be ordered due to the evaporator plastic configuration.
