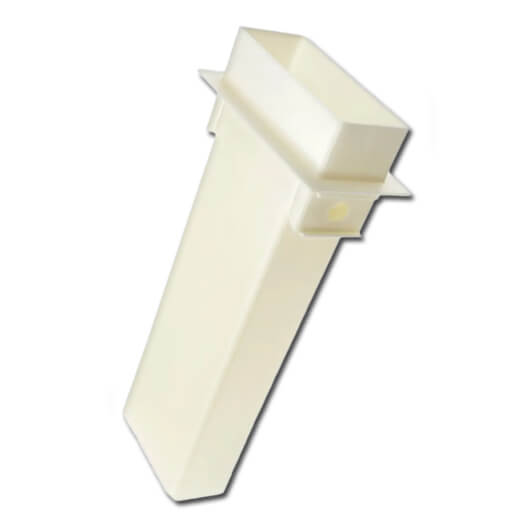

Product Description

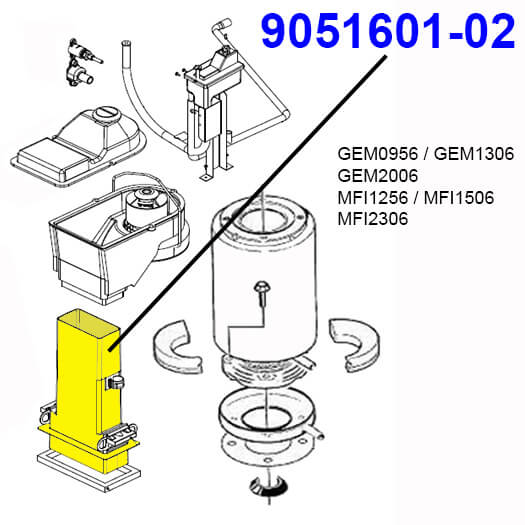

- FOR GEM0956 (R404, R290 and R449)
- FOR GEM1306 (R404, R290 and R449)
- FOR GEM2006R (R404 and R449)
- FOR MFI1256 (R404, R290 and R449)
- FOR MFI1506 (R404, R290 and R449)
- FOR MFI2306R (R404 and R449)
- SYSTEM SECTION: Down Chute-Water System
- USED WITH OEM # 9051614-01 (Chute Gasket)
- USED WITH OEM # 1051166-01 (Bin Control)
- USED WITH OEM # 9131495-01 (Foam Assembly)
- IF HEM MODEL, SEE OEM PART # 9051601-03 AND 9051601-04
Note: There is conflicting information presented in the R449 remote cooled parts manual for GEM0650 and MFI0800 models. Seeing as this component is unrelated to refrigerant type and is primarily part of the water and ice chute distribution system, the information should be consistent between models.
In the R404 and R290 parts manuals, these two models are shown using part # 9051601-01. However, in the R449 manual it suddenly shows item # 9051601-02. These two models are not identified above in the list of models as it’s quite probable that a mistake was made by the manufacturer. Regardless, there is no documentation provided by the manufacturer to explain or clarify the discrepancy. This incident could be a misinterpretation on our part or an error on theirs.
The HEM models are referenced in the R290 parts manual showing part # 9051601-03 and 9051601-04, but not in the R449 version. Although engineered with shared parts used by the GEM models, the dispensing of hard ice required a different ice dispense solution. Thus the lower ice shoot is different than the parts used by the GEM units. Since the HEM isn’t mentioned in the R449 remote parts book, the lower ice chute part number for the remote models can’t be provided at this time (It is suspected that the part numbers are the same as what is listed in the R290 manual).
