WATER DISTRIBUTION TUBE (2041338-02), FOR 22″/48″ ICE

Item # 2041338-02

Price: $66.77

  • Water Distribution Tube Assembly
  • OEM Part # 2041338-02
  • FOR ICE0320, ICE0520, ICE1506
  • FOR ICE1406, ICE1806, ICE2106
  • FOR ICE1407, ICE1807, ICE2107

Product Description

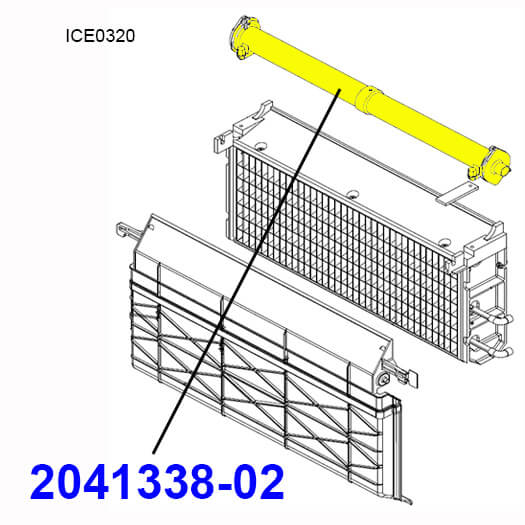

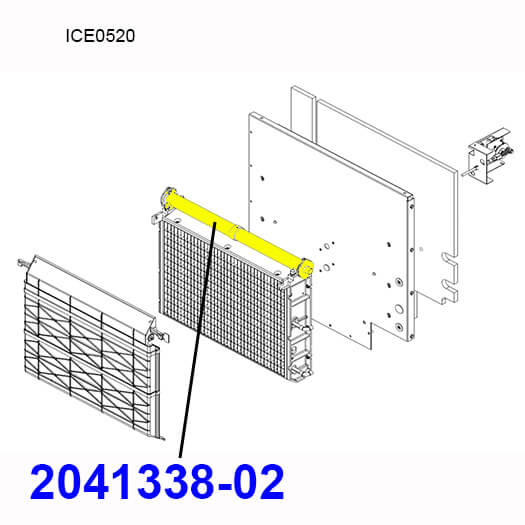

  • FOR ICE0320 / ICE0520
  • FOR ICE1506
  • FOR ICE1406 / ICE1806 / ICE2106
  • FOR ICE1407 / ICE1807 / ICE2107
  • SYSTEM SECTION: Water System

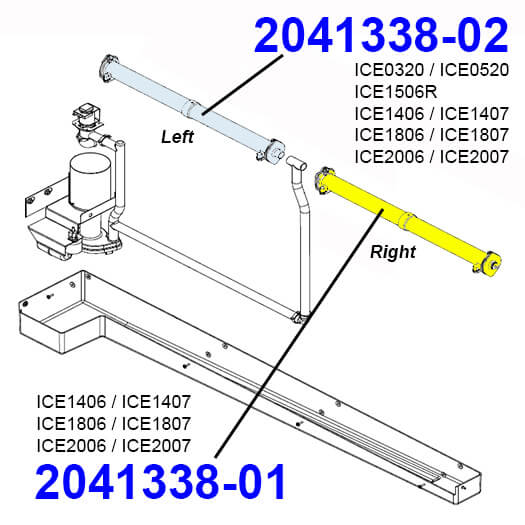

  • IF ICE140X, USE W/ LEFT SIDE EVAP
    • USE OEM # 2041338-01 for right side tube
  • IF ICE180X, USE W/ LEFT SIDE EVAP
    • USE OEM # 2041338-01 for right side tube
  • IF ICE210X, USE W/ LEFT SIDE EVAP
    • USE OEM # 2041338-01 for right side tube

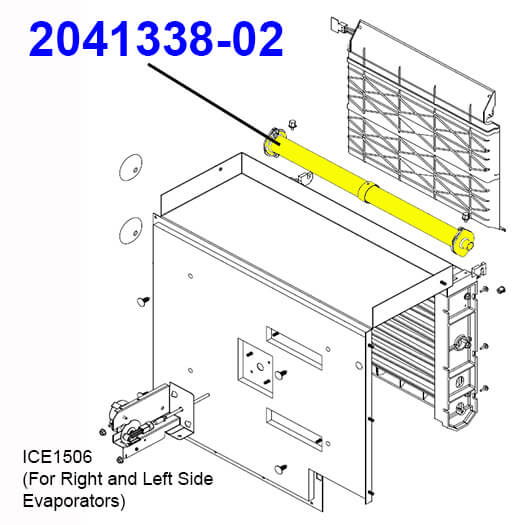

  • IF ICE1506 (R404) (Used right and left sides)
  • IF ICE1506HT49 (R449) (Used right and left sides)
  • IF ICE1506HR49 (R449) (Used right and left sides)
  • USED WITH OEM # 9031122-01 (Thumb Screw)
  • USED WITH OEM # 9031004-19 (Washer)

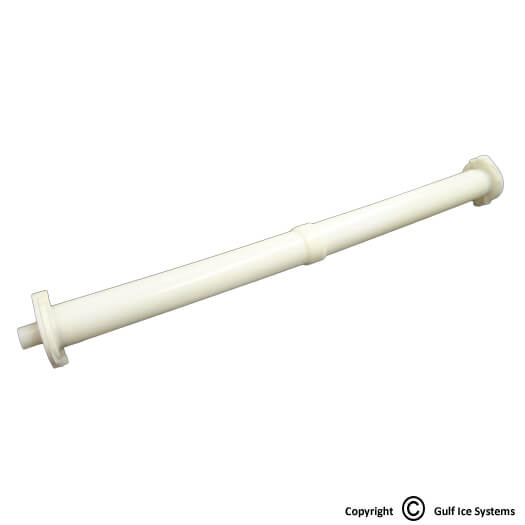

This distribution tube is a critical component used to spread or distribute water evenly across the top of the vertical evaporator. This water cascades down to freeze into a uniformed ice sheet across the evaporators grid design. Thus ice cubes are created upon harvest.

The ICE series models are obsolete and no longer produced.

We may not have stock at the time of purchase. Upon ordering it, we will check availability and respond back if an issue exists. This part may require a special order and a lead time.

Product Specifications

Dimensions
Product Weight .76 lbs
