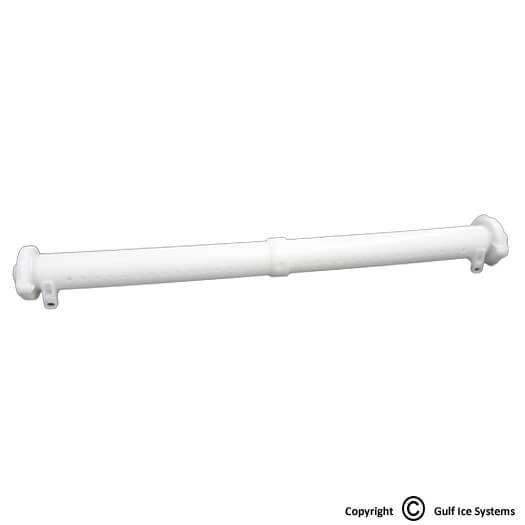

WATER DISTRIBUTION TUBE (2041338-01), FOR CIMU / ICEU / ICE

Item # 2041338-01

Price: $66.77

  • Water Distribution Tube Assembly
  • OEM Part # 2041338-01
  • For CIMU220xA90, CIMU300xA90
  • For all ICEU models
  • For all ICE series models

Product Description

  • FOR CIMU220xA90
  • FOR CIMU300xA90

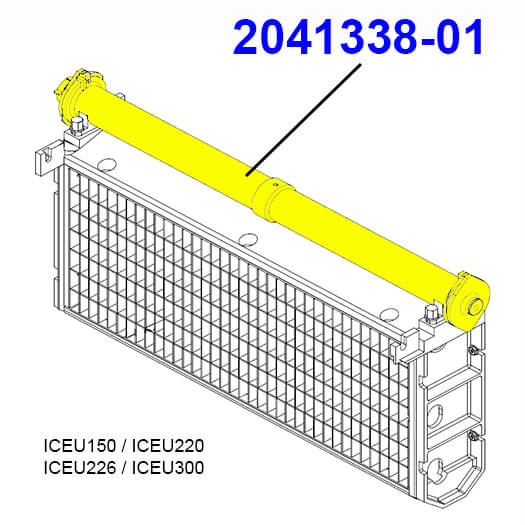

  • FOR ICEU150 / ICEU220 / ICEU226 / ICEU300
  • FOR ICE0250 / ICE0400 / ICE0406
  • FOR ICE0500 / ICE0606 / ICE0806
  • FOR ICE1006 / ICE1007
  • FOR ICE1406 / ICE1407
  • FOR ICE1806 / ICE1807
  • FOR ICE2106 / ICE2107
  • SYSTEM SECTION: Water System

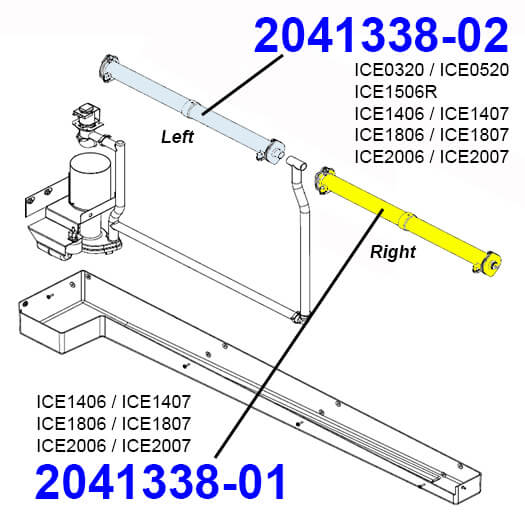

  • IF ICE140X, USE W/ RIGHT SIDE EVAP
    • USE OEM # 2041338-02 for left side tube
  • IF ICE180X, USE W/ RIGHT SIDE EVAP
    • USE OEM # 2041338-02 for left side tube
  • IF ICE210X, USE W/ RIGHT SIDE EVAP
    • USE OEM # 2041338-02 for left side tube
  • USED WITH OEM # 9031122-01 (Thumb Screw)
  • USED WITH OEM # 9031004-19 (Washer)

This distribution tube is a critical component used to spread or distribute water evenly across the top of the vertical evaporator. This water cascades down to freeze into a uniformed ice sheet across the evaporators grid design. Thus ice cubes are created upon harvest.

The ICE and ICEU models are obsolete and no longer produced.

Product Specifications

Dimensions
Product Weight .76 lbs
Additional Specifications
Vendor

Product Manuals & Documents
