Product Description
- FOR CIM0826xA (R404)
- FOR CIM0826xA90 (R290)
- FOR CIM0826xA49 (R449)
- FOR CIM0836xA (R404)
- FOR CIM0836xA90 (R290)
- FOR CIM0836xA49 (R449)
- FOR CIM1126xA (R404)
- FOR CIM1126xA90 (R290)
- FOR CIM1126xA49 (R449)
- FOR CIM1136xA (R404)
- FOR CIM1136xA90 (R290)
- FOR CIM1136xA49 (R449)
- SYSTEM SECTION: Electrical System
- FOR AIR AND WATER COOLED MODELS ONLY

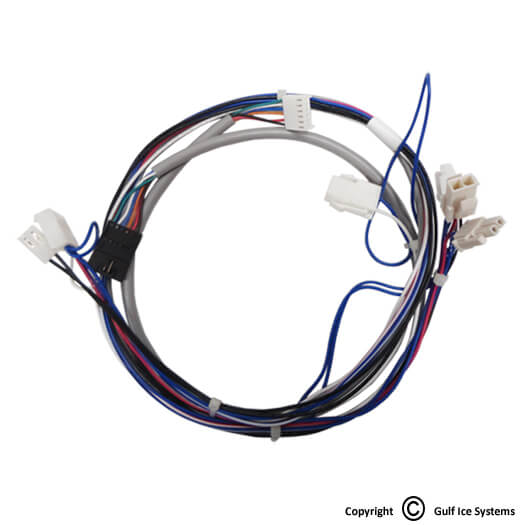

This wire harness routes low-voltage from the main control board to the operational core of the machine. It also manages components like probes, reed switches, cutouts, and thermistors. Used with air and water cooled models only.
This wire harness is only identified in the R290 parts manual dated 11/20/25. The manual broadly identified the 22″ and 30″ models without providing specifics. Since this component existed before the R290 models came out, it’s likely used on the earlier R404 models as identified above (it was never documented by IOM). As such, the information provided above is an interpretation and could prove to be incorrect. Any misinformation is not intentional.
