CRANKCASE REGULATOR VALVE (9151146-01), FOR CIM0530R / ICE0500R

Item # 9151146-01

Price: $308.20

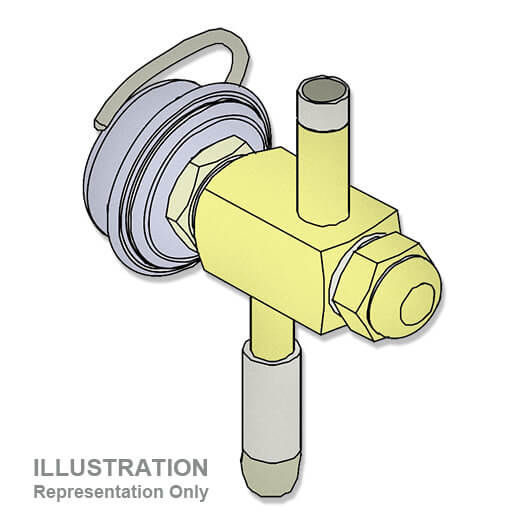

  • Crankcase Regulator Valve
  • OEM Part # 9151146-01
  • For CIM0530xR(49) (R404-R449)
  • For ICE0500xR

Product Description

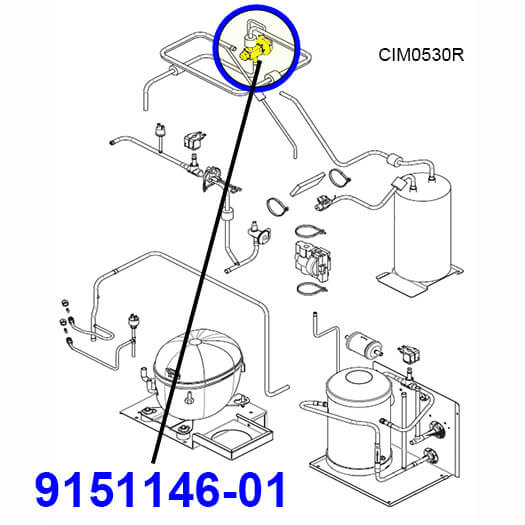

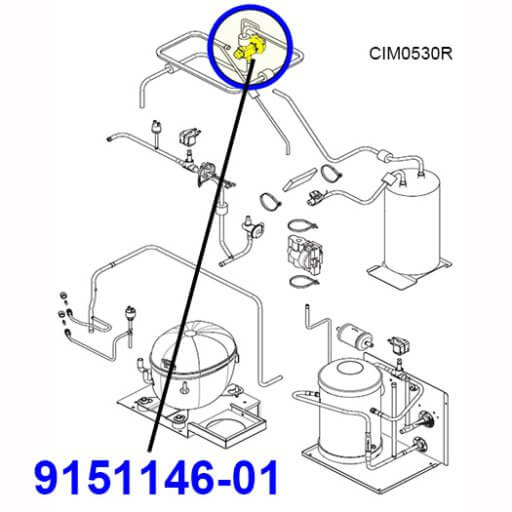

  • FOR CIM0530xR (R404)
  • FOR CIM0530xR49 (R449)

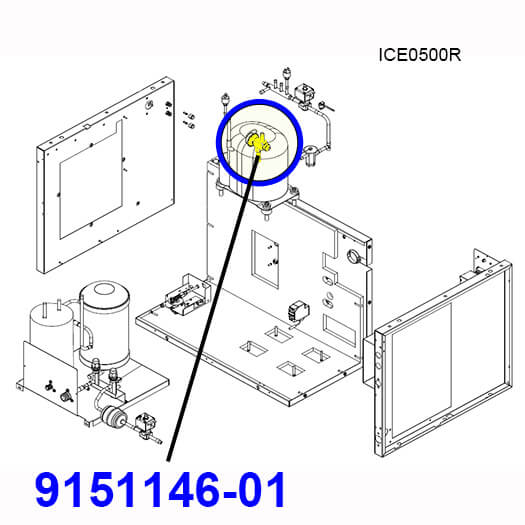

  • FOR ICE0500R
  • SYSTEM SECTION: Remote Cooled System
  • SYSTEM SECTION: Refrigeration System
  • ALSO CALLED, “CPR Valve”
  • ALSO CALLED, “Pressure Control Valve”
  • REPLACES OEM # 9151086-01

This CPR valve is sometimes called a pressure relief or pressure control valve. It serves to protect the compressor motor from overloading during hot pull-downs or immediately following a harvest cycle when internal pressures spike. Additionally, it provides a protective function as it monitors suction pressure to the compressor. If pressure exceeds a safe operating threshold, the CPR valve will actively modulate or limit the maximum pressure entering the crankcase. It essentially prevents excessive amperage draws, electrical shorts, tripped breakers, and a catastrophic compressor failure.

We won’t have stock at the time of purchase. Upon ordering it, we will check availability and respond back if an issue exists. This part will require a special order and a lead time.

Product Specifications

Dimensions
Product Weight .45 lbs
Additional Specifications
Vendor

Product Manuals & Documents
