Product Description
- FOR CIM0530xR
- FOR CIM0636xR
- FOR CIM0836xR
- FOR CIM1136xR / CIM1137xR

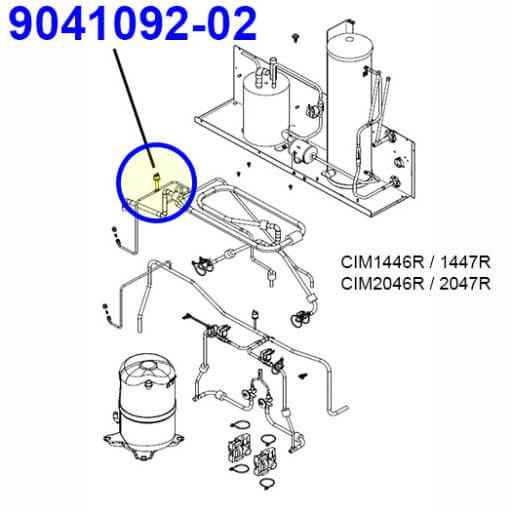

- FOR CIM1446xR / CIM1447xR
- FOR CIM2046xR / CIM2047xR
- (Component used on R404 and R449 refrigerant CIM cubers)
- FOR ICE0500xR UP TO ICE2107xR
- FOR ICE1506xR (R404)
- FOR ICE1506HR49 (R449)
- REMOTE COOLED UNITS ONLY
- SYSTEM SECTION: Remote Cooled System
The control pressure pump down is primarily used on remote cooled systems. Since the compressor sits a long way from the evaporator, refrigerant vapor may condense into a liquid inside the cold compressor affecting the oil. This condition is called, “liquid slugging” which can destroy compressor valves on a startup. The purpose of this pump down control is to prevent that event from manifesting. It is installed into the low-side suction pressure line. At the end of an ice production cycle, as the compressor drains the lines, suction pressure will drop sharply. When the pressure reaches the cutout point, the switch is triggered and cuts power to the contactor and shuts down the unit. The purpose isn’t to simply shut down the compressor, it’s to provide a slight vacuum in the empty low-side suction lines. This prevents the accumulation of refrigerant vapor from forming in the compressor.
The ICE series models are obsolete and no longer produced (except R449).
